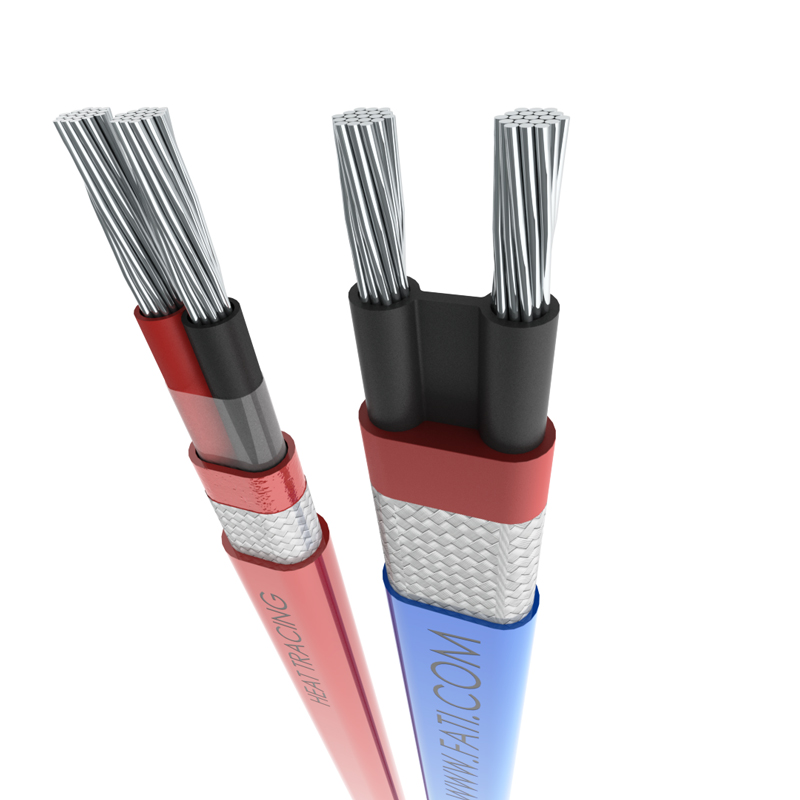

FFHT-X Self Regulating Heating Cable https://www.fati.com/2021/wp-content/uploads/2022/07/Heat-Cables-Self-Ruel.pdf   Features · Energy efficient, automatically varies its power output in response to pipe temperature changes. · Easy to install, can be cut to any length (up to 125 meters) required on site with no wasted cable. · Lower installed cost than steam tracing, less maintenance expense and less downtime. · No overheat or burnout even when wrapped over itself (overlapped). · Suitable for use in non-hazardous, hazardous and corrosive environments. · FATI power connection, splice, tee and end seal kit will reduce installation time. · Optional outer jacket, the heating cable is resistant to watery and inorganic chemicals and corrosive. Option ·FFHT-X…C Tinned copper or stainless steel braid provide additional mechanical protection and a positive groundpath. ·FFHT-X…CG High Temperature Fluoropolymer overjacket are used for exposure to organic or corrosive solutions or vapors may Technical data Service voltage 110V/230V Maximum maintain temperature (power on) +120℃ (250℉) Maximum exposure temperature (power off) +200℃ (390℉) Minimum installation temperature -40℃ (-40℉) Protective braid resistance ﹤18.2Ω/km Bus wire gauge 16 AWG Approvals EPT 16 ATEX 2551 X FFBT -X Self Regulating Heating Cable Features · Energy efficient, automatically varies its power output in response to pipe temperature changes. · Easy to install, can be cut to any length (up to 125 meters) required on site with no wasted cable. · Lower installed cost than steam tracing, less maintenance expense and less downtime. · No overheat or burnout even when wrapped over itself (overlapped). · Suitable for use in non-hazardous, hazardous and corrosive environments. · FATI power connection, splice, tee and end seal kit will reduce installation time. · Optional outer jacket, the heating cable is resistant to watery and inorganic chemicals and corrosive. Option ·FFBT-X…C Tinned copper braid provide additional mechanical protection and a positive groundpath. ·FFBT-X…CG High Temperature Fluoropolymer overjacket are used for installationin hazardous location or where corrosive solutions or vapors may be present. FFBT -X Self Regulating Heating Cable Application FFTB-X is an industrial grade, ATEX approved self-regulating parallel heating cable (heating tape) manufactured in accordance to BS6351 Grade 22, that can be used for applications ranging from process heating or maintenance of temperature up to 65℃. It can be used in hazardous and non-hazardous locations, including areas where corrosives may be present. Features The FCTU series of self-regulating heating cables are designed to supply a specified amount of heat at any point along their length in direct response to local temperature variations. These cables can maintain temperatures up to 375°F (190°C) and will withstand 190 psig saturated steam purging and intermittent temperature excursions to 475°F (250°C) with power applied. FCTU cables can be cut to length and terminated in the field, and will not overheat or burnout when overlapped. Type Dimension Min.bending radius Weight (kg/100m) FFBT-X…C 9.3×4.4mm 26mm 9.7 FFBT-X…CT 10.3×5.4mm 32mm 9.5 FCTU Self Regulating Heating Cable Application ·The industrial grade FCTU cables provide freeze protection and process temperature maintenance for fluid transport and storage systems requiring very high levels of heat output or exposure to elevated temperatures. The bus wires, jackets and metallic braids can be configured for both ordinary (non-classified) locations and hazardous (classified), including areas where exposure to corrosive or organic materials is possible. Power Adjustment Factor Part No. 208 Volts 277 Volts 15FCTU2-CT 0.87 1.17 30FCTU2-CT 0.88 1.14 45FCTU2-CT 0.90 1.10 60FCTU2-CT 0.94 1.08
